Rig12+

Rig12+ is a heat set and pre-stretched 12 strand Dyneema® SK78 single braid with PU Coating for improved protection against abrasion and the elements. This very low stretch line is pre-stretched and heat set to produce a stronger, lower stretch product. Rig12+ is easy to splice and is ideal for halyards, control lines, lashings and strops. Dyneema® Max DM20 and Dyneema® SK99 versions are also available on request.

0.5%

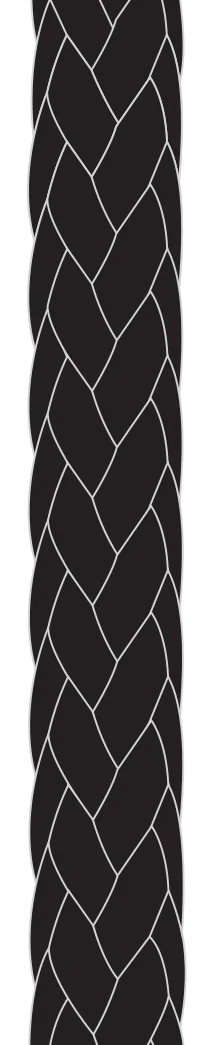

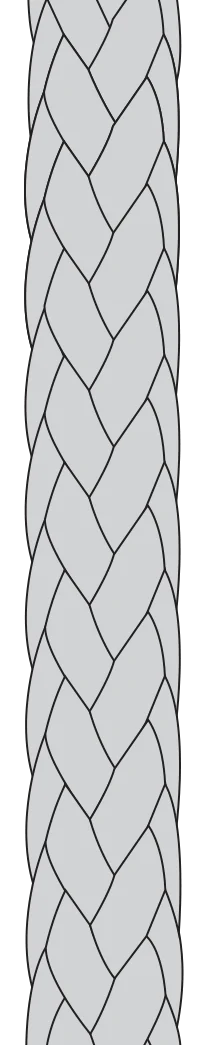

Colours

Specification

Technical Data

Diameter (mm)

3

4

5

6

8

10

12

14

16


Min Break
Strength (kgs)

1200

1900

3000

3800

7500

10,000

17,600

20,200

25,550

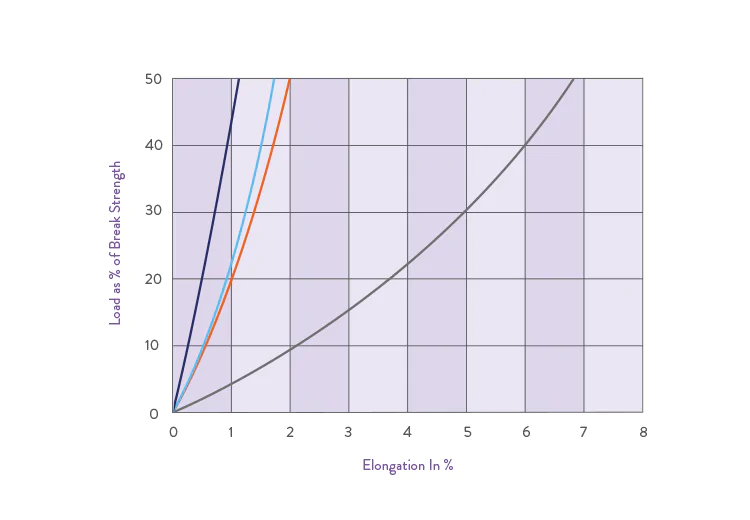

Load-Elongation Curve

Elongation is based on figures taken from tests across the diameter range, to produce an average figure.

Applications

Halyards

A Halyard is used to hoist a sail, ropes used for halyards are normally very low stretch to keep the sail raised and taut.

Material

Dyneema®

Dyneema®, the world’s strongest fiber™, is respected as the premium brand for Ultra-High Molecular Weight Polyethylene (UHMwPE). We offer many ropes produced using Dyneema® fibres including single braids and double braids. We use Dyneema® SK99, Dyneema® SK78 and Dyneema® DM20 fibres to produce our ropes. These different types of Dyneema® fibre are used to produce ropes for specific applications.
