Rig12+ Commercial

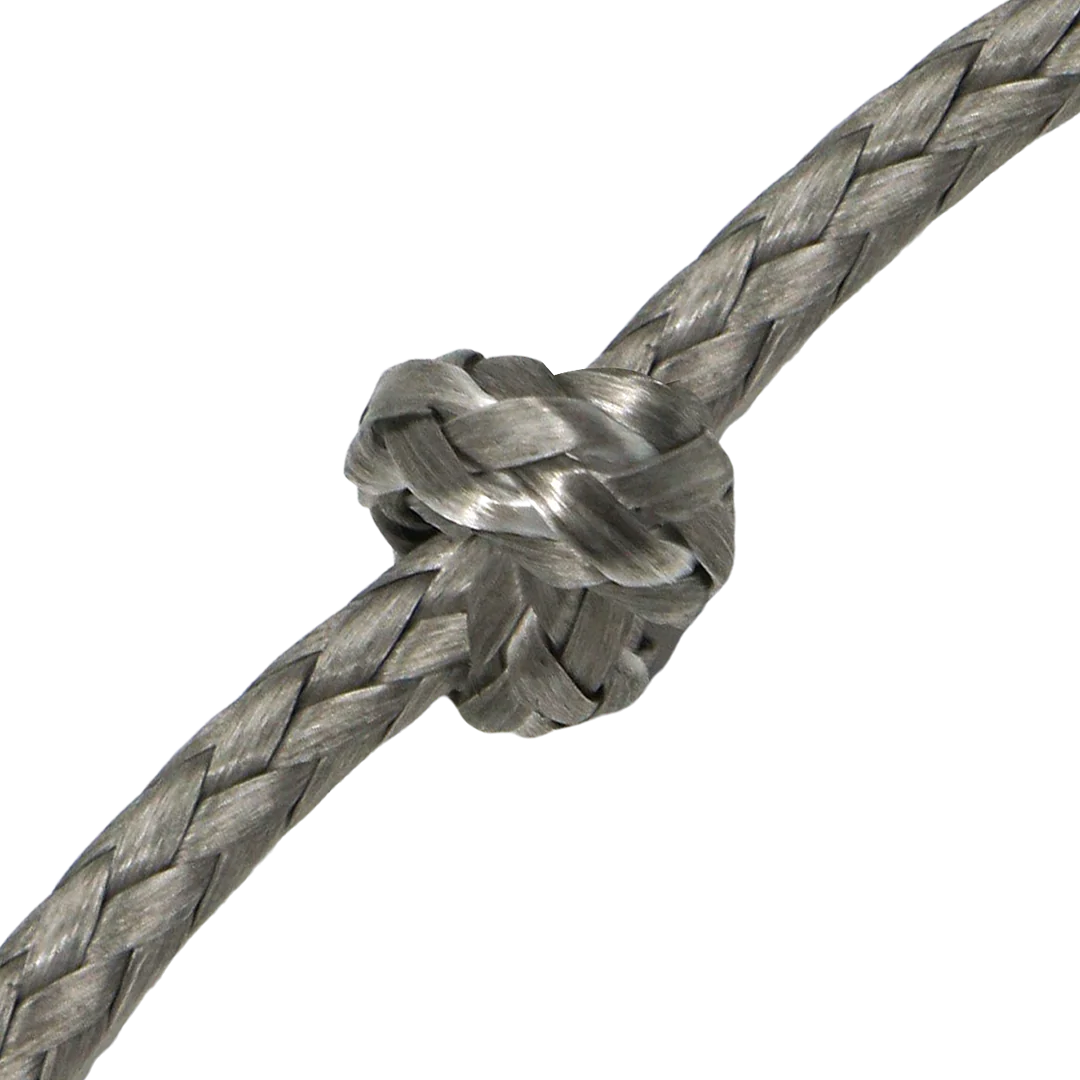

Rig12+ Commercial is a 12 strand Dyneema® SK78 single braid with PU Coating the line is heat set under load to increase break load and reduce stretch. This low stretch line is very easy to splice and is available to order in 18mm all the way up to 64mm diameter. Rig12+ Commercial is available in custom lengths and colours and is ideal as a commercial marine mooring rope and many industrial applications including cable pulling. Rig12+ Commercial is a excellent replacement for steel wire ropes with a weight approximately 7times lighter.

  • High strength heat set
  • Low creep and stretch
  • Large diameters avaialble
  • Floating line
  • Lightweight
  • Easy to Splice
  • Excellent abrasion resistance
  • Custom lengths

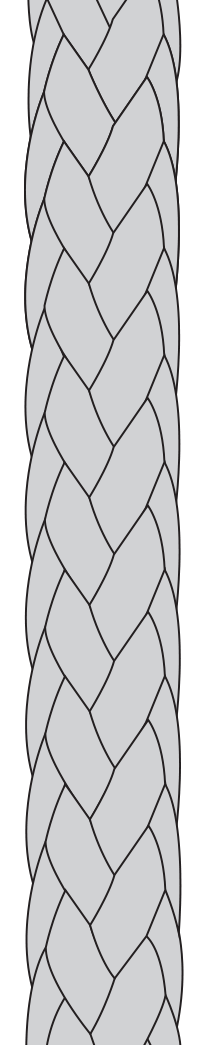

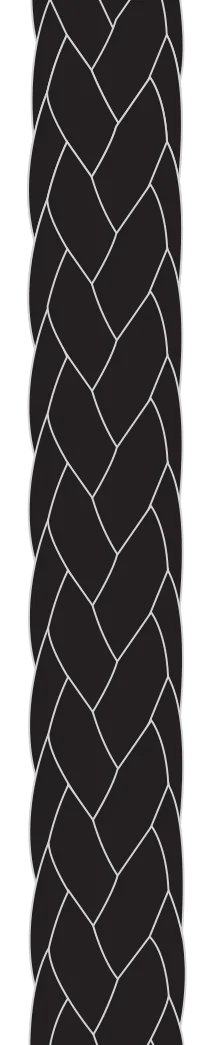

Colours

Specification

Technical Data

Diameter (mm)

Spliced Minimum Break Load daN

18

416.7

20

477.8

22

561.1

24

638.9

26

738.9

28

822.2

30

905.6

32

988.9

34

1138.9

36

1222.2

38

1466.7

40

1666.7

44

1833.3

46

2000

48

2222.2

52

2500

56

2888.9

60

3111.1

64

3417.8

Material

Dyneema®

Dyneema®, the world’s strongest fiber™, is respected as the premium brand for Ultra-High Molecular Weight Polyethylene (UHMwPE). We offer many ropes produced using Dyneema® fibres including single braids and double braids. We use Dyneema® SK99, Dyneema® SK78 and Dyneema® DM20 fibres to produce our ropes. These different types of Dyneema® fibre are used to produce ropes for specific applications.
