Overview

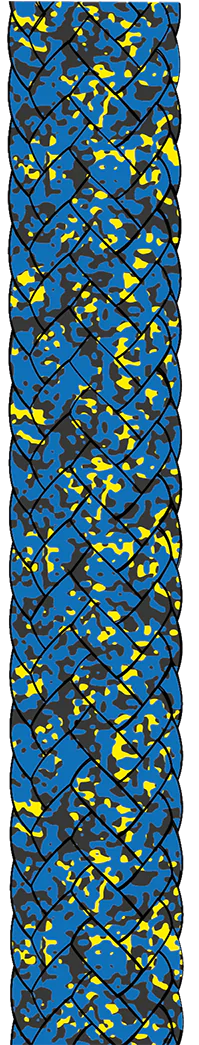

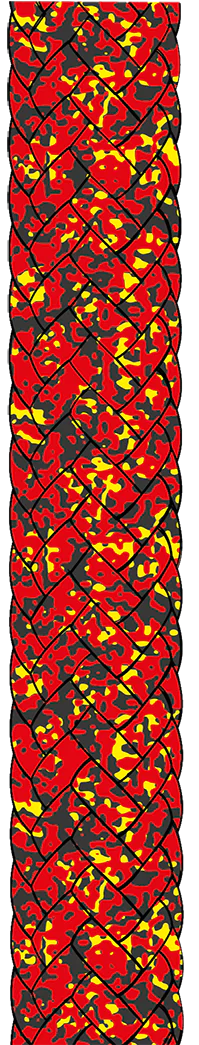

Racing Dyneema® 99 Pro Halyard

Racing Dyneema® 99 Pro Halyard has been designed to provide the best possible holding ability in clutches and jammers.

1%

Colours

Specification

Technical Data

Diameter (mm)

8

10

12


Min Break
Strength (kgs)

3570

5250

7650

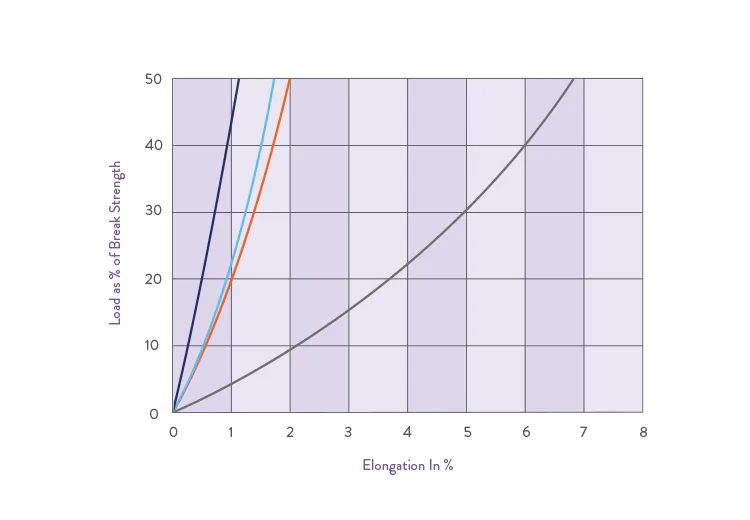

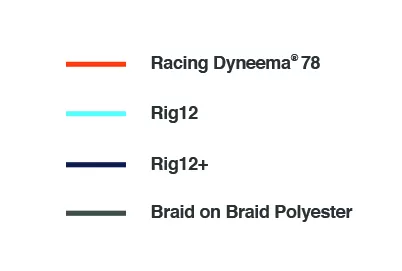

Load-Elongation Curve

Elongation is based on figures taken from tests across the diameter range, to produce an average figure.

Applications

Halyards

A Halyard is used to hoist a sail, ropes used for halyards are normally very low stretch to keep the sail raised and taut.

Material

Dyneema®

Dyneema®, the world’s strongest fiber™, is respected as the premium brand for Ultra-High Molecular Weight Polyethylene (UHMwPE). We offer many ropes produced using Dyneema® fibres including single braids and double braids. We use Dyneema® SK99, Dyneema® SK78 and Dyneema® DM20 fibres to produce our ropes. These different types of Dyneema® fibre are used to produce ropes for specific applications.

dyneema ropes logo

Cordura®

Cordura® fibres are used in some of our ropes to provide extra grip, especially when handling the ropes for sheets or where additional holding power is required in Clutches and Jammers. Cordura® is a form of Nylon with a texturized finish.

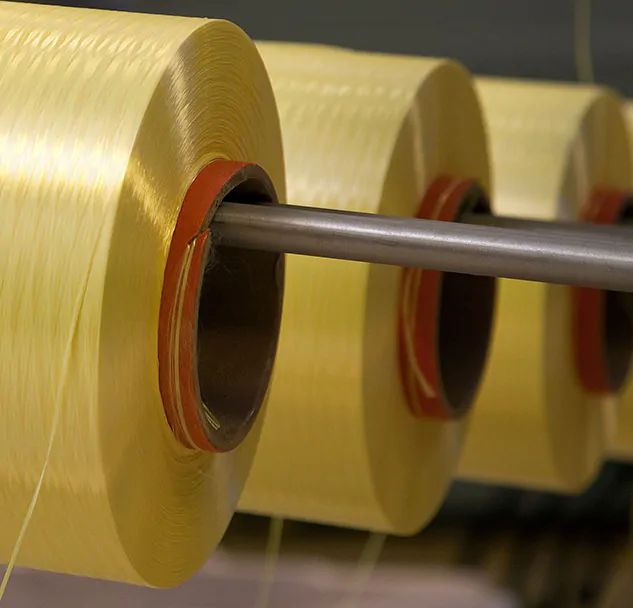

Kevlar®

Kevlar® fibres are produced by DuPont™, the fibres are extremely strong with a melting point is above 500°C (930 °F). Kevlar fibres also have a very good abrasion resistance making the fibre ideal as part of a technical rope cover.

Polyester

Polyester has a specific gravity of 1.38 which means it will not float. Polyester has no strength loss when wet, it is flexible and has good abrasion resistance. Polyester fibres also have good resistance to chemicals and have a melting point of 295°C.
