Overview

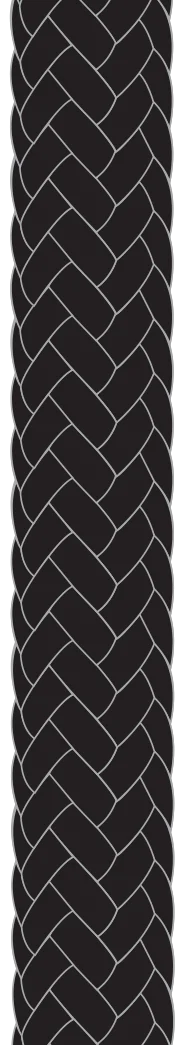

Dockline is an ideal mooring rope. It has a braided Nylon core, providing strength and stretch, and a braided Polyester cover for excellent abrasion resistance.
10%
Colours
Specification
Technical Data
Diameter (mm)
12
14
16
18
20
24
Min Break
Strength (kgs)
3500
5500
6700
8000
10000
12000
Load-Elongation Curve
Elongation is based on figures taken from tests across the diameter range, to produce an average figure.
Applications
Fender Lines
Mooring
Material
Polyester
Polyester has a specific gravity of 1.38 which means it will not float. Polyester has no strength loss when wet, it is flexible and has good abrasion resistance. Polyester fibres also have good resistance to chemicals and have a melting point of 295°C.
Nylon
Nylon (or Polyamide) fibres are stronger than Polyester fibres and provide greater stretch (elongation), Ropes produced with Nylon fibres can lose upto 15% strength when wet. The specific gravity of Nylon is 1.14 which makes it sink, the fibre has a melting point of 250 degree C.
