Overview

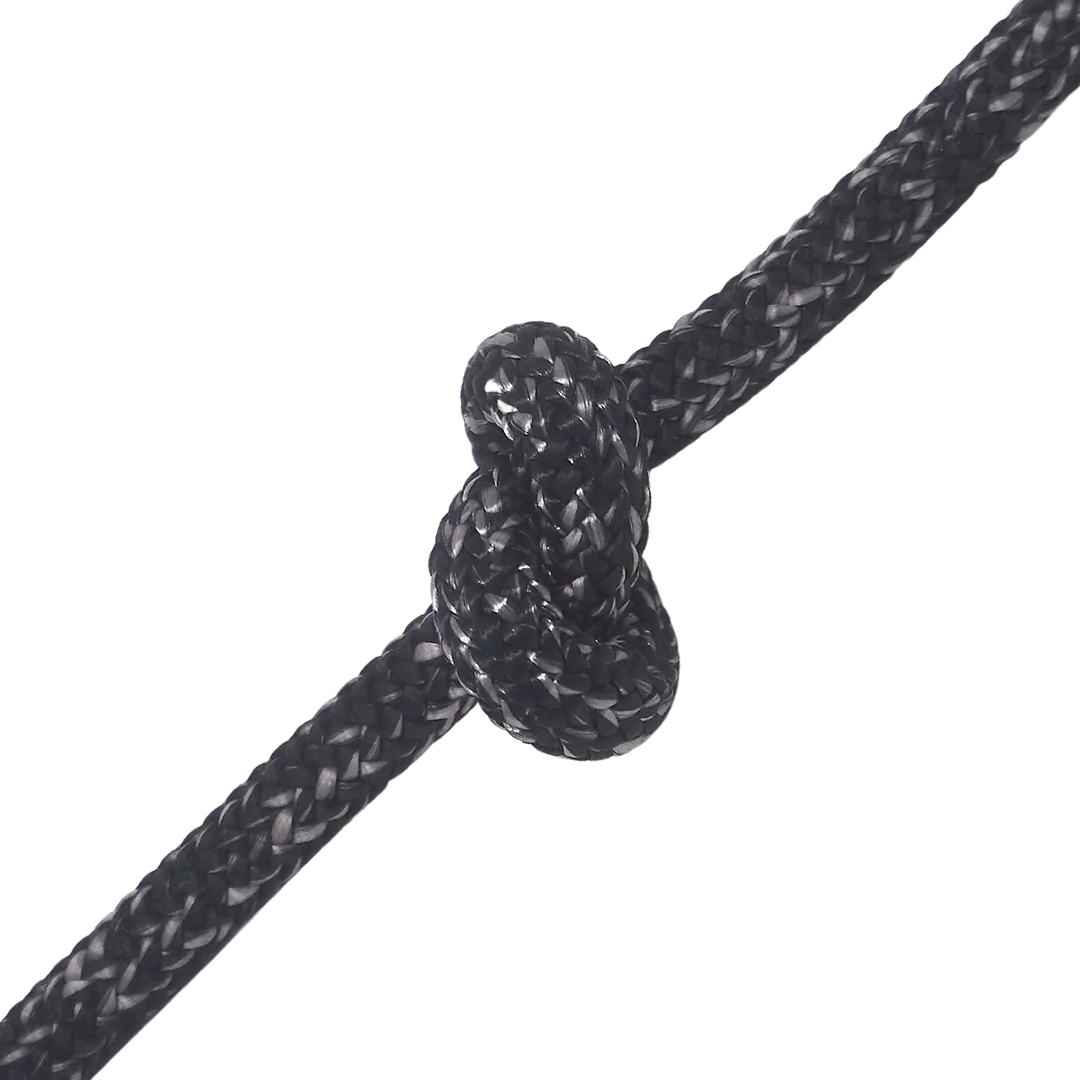

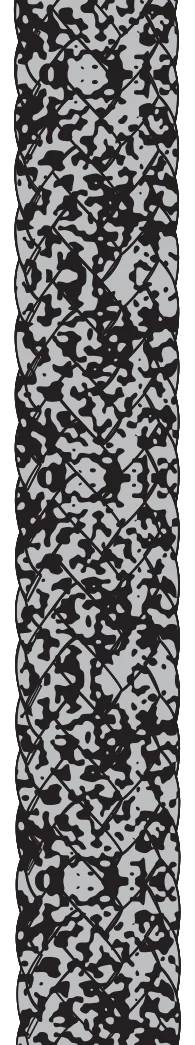

Evolution Taper is a triple braid construction containing 4mm Evolution Race 78 with an additional Polyester braided cover, it is ideal for tapered spinnaker sheets. We also produce a version made to order with a Technora® cover for added abrasion resistance called Tapertech.
1%

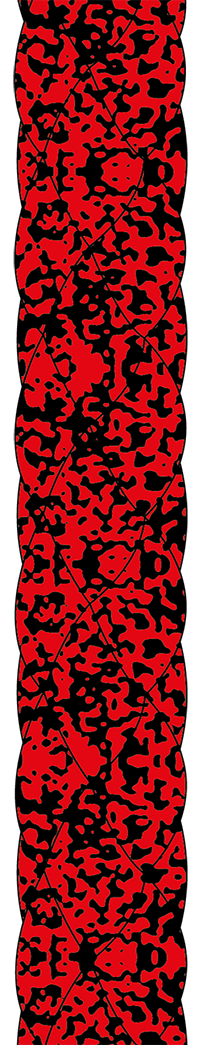

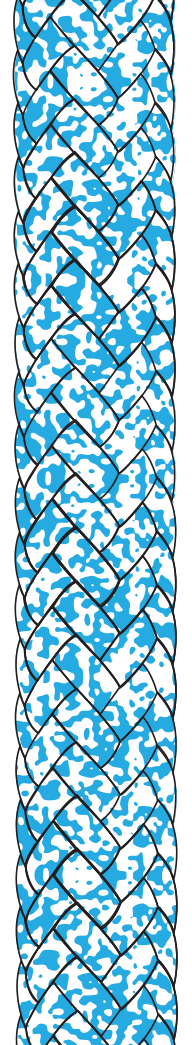

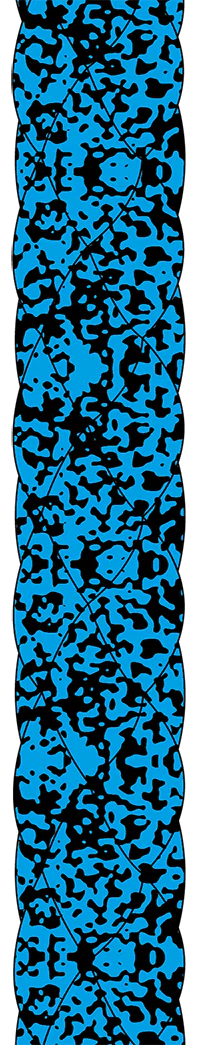

Colours
Specification
Technical Data
Diameter (mm)
6 polyester
6 tapertech
Min Break
Strength (kgs)
720
720

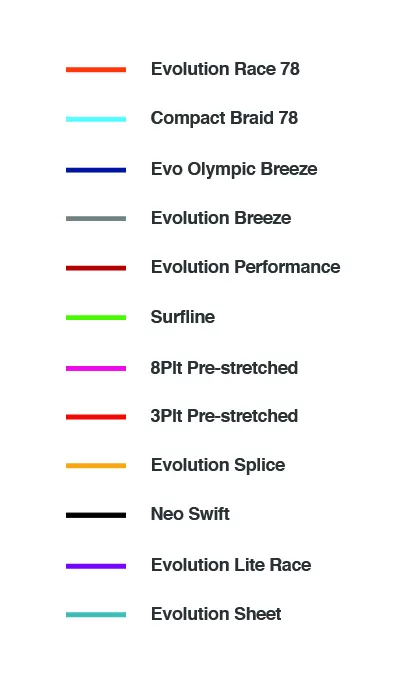

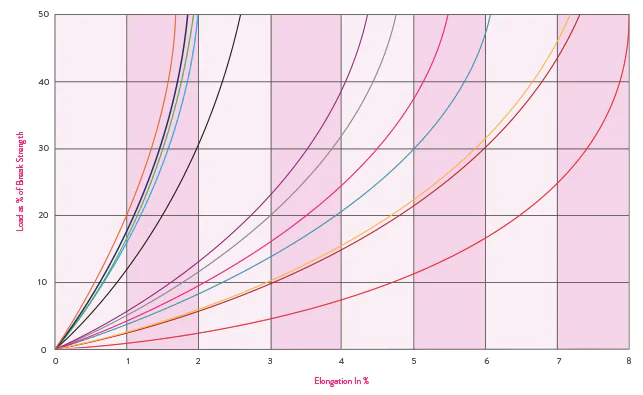

Load-Elongation Curve
Elongation is based on figures taken from tests across the diameter range, to produce an average figure.
Applications
Sheets
Material
Polyester
Polyester has a specific gravity of 1.38 which means it will not float. Polyester has no strength loss when wet, it is flexible and has good abrasion resistance. Polyester fibres also have good resistance to chemicals and have a melting point of 295°C.
Dyneema®
Dyneema®, the world’s strongest fiber™, is respected as the premium brand for Ultra-High Molecular Weight Polyethylene (UHMwPE). We offer many ropes produced using Dyneema® fibres including single braids and double braids. We use Dyneema® SK99, Dyneema® SK78 and Dyneema® DM20 fibres to produce our ropes. These different types of Dyneema® fibre are used to produce ropes for specific applications.

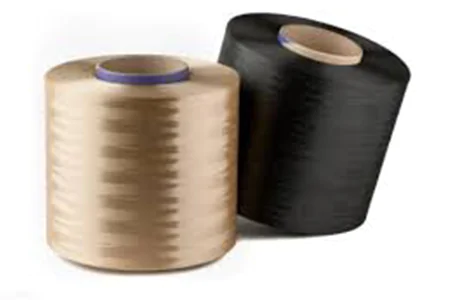

Technora®
Technora® is a para-aramid fibre, exclusively produced by Teijin Aramid in Matsuyama, Japan. The fibre is available in two colours natural beige colour and black version. Technora® is strong with excellent abrasion resistance, the fibre has no melting point but starts to decompose once the ambient temperature reaches 500 °C (932 °F).
