Overview
Evolution Splice is a 12 strand PU coated, low stretch Polyester single braid that is very easy to splice
and is ideal for control lines and tails.
4%

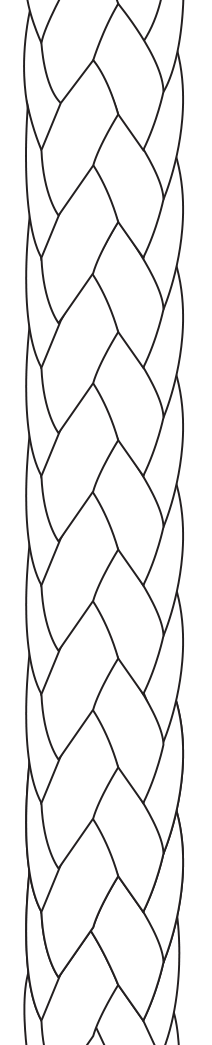

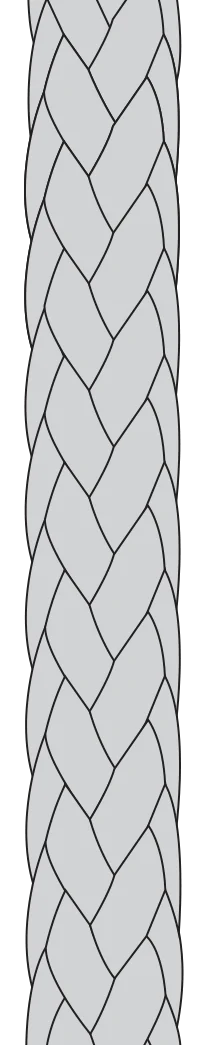

Colours
Specification
Technical Data
Diameter (mm)
3
4
5
6
Min Break
Strength (kgs)
250
440
720
1040
Load-Elongation Curve
Elongation is based on figures taken from tests across the diameter range, to produce an average figure.
Material
Polyester
Polyester has a specific gravity of 1.38 which means it will not float. Polyester has no strength loss when wet, it is flexible and has good abrasion resistance. Polyester fibres also have good resistance to chemicals and have a melting point of 295°C.
