Racing Dyneema® 78 Pro Sheet

Racing Dyneema® 78 Pro Sheet has a Dyneema® SK78 12 strand coated core, and a braided Technora® / Polyester melange style cover. This technical cover has been designed to be used for high load sheets on racing yachts and has excellent heat and abrasion resistance.

1%

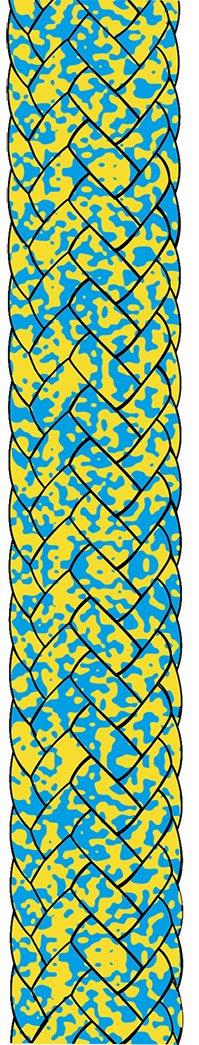

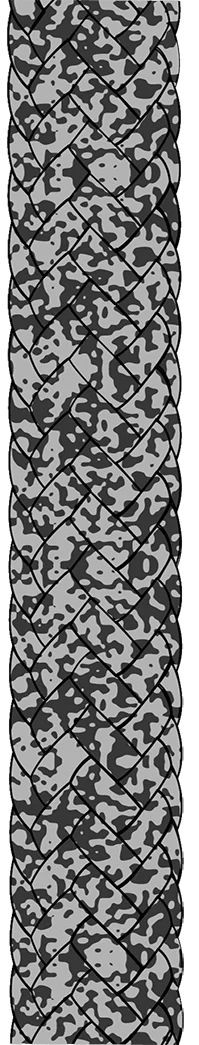

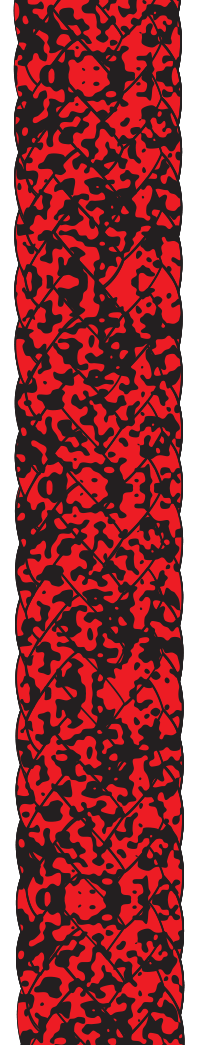

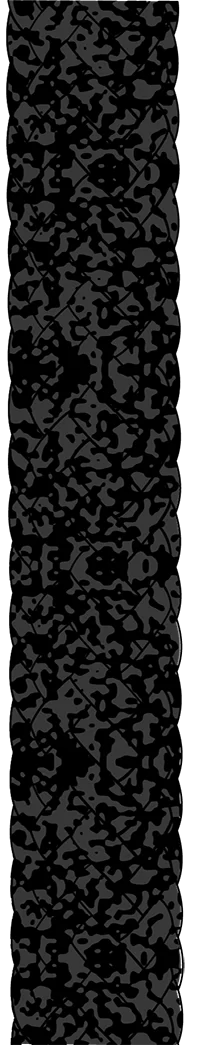

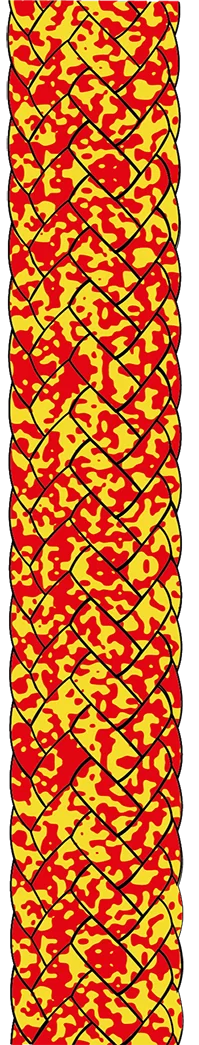

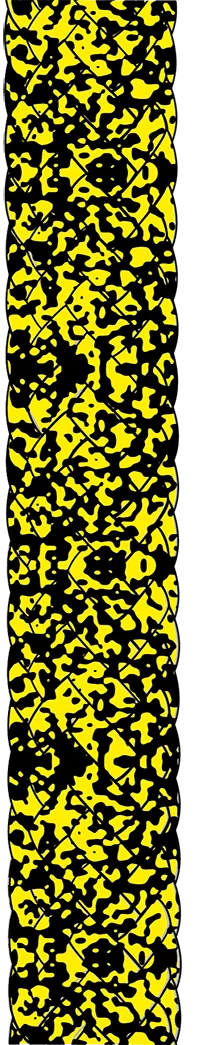

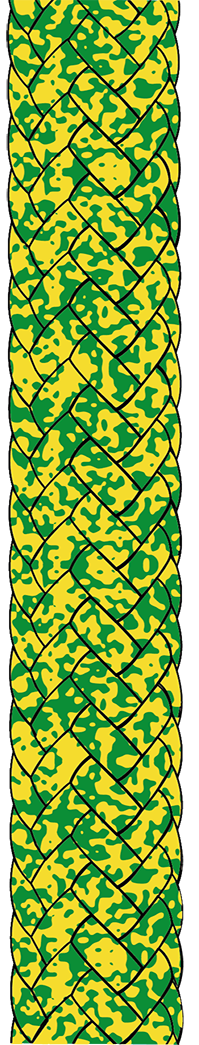

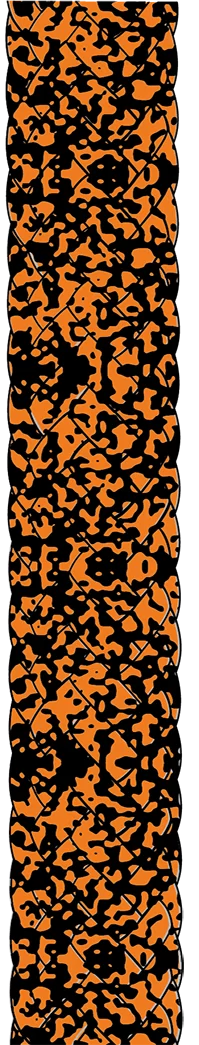

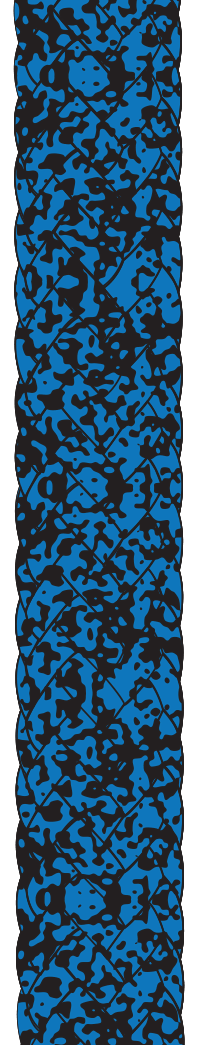

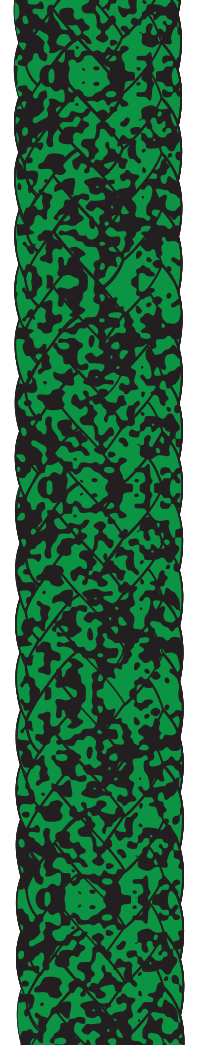

Colours

Specification

Technical Data

Diameter (mm)

8

10

12

14


Min Break
Strength (kgs)

3570

5250

7650

10,150

Load-Elongation Curve

Elongation is based on figures taken from tests across the diameter range, to produce an average figure.

Applications

Halyards

A Halyard is used to hoist a sail, ropes used for halyards are normally very low stretch to keep the sail raised and taut.

Sheets

Sheets are a line used to control the movable clews of a sail. We have many options for sheets on board for dinghy sailors through to Grand Prix race boats.

Material

Dyneema®

Dyneema®, the world’s strongest fiber™, is respected as the premium brand for Ultra-High Molecular Weight Polyethylene (UHMwPE). We offer many ropes produced using Dyneema® fibres including single braids and double braids. We use Dyneema® SK99, Dyneema® SK78 and Dyneema® DM20 fibres to produce our ropes. These different types of Dyneema® fibre are used to produce ropes for specific applications.

Polyester

Polyester has a specific gravity of 1.38 which means it will not float. Polyester has no strength loss when wet, it is flexible and has good abrasion resistance. Polyester fibres also have good resistance to chemicals and have a melting point of 295°C.

Technora®

Technora® is a para-aramid fibre, exclusively produced by Teijin Aramid in Matsuyama, Japan. The fibre is available in two colours natural beige colour and black version. Technora® is strong with excellent abrasion resistance, the fibre has no melting point but starts to decompose once the ambient temperature reaches 500 °C (932 °F).
